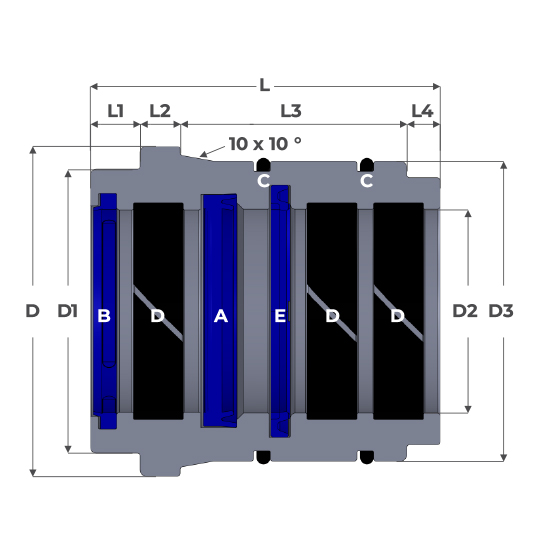

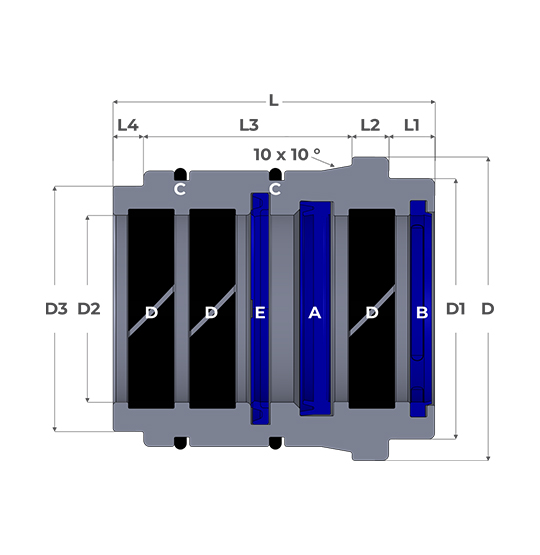

| ÜRÜN KODU PRODUCT CODE |
YATAKLAMA
ROD GUIDE RING |
NUTRİNG ROD SEAL |
ÖN BASINÇ
RİNGİ BUFFER SEAL |
TOZ KEÇESİ WIPER |
ORİNG O-RING |
D mm |
D1 mm |
D2 mm |
D3 mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
L mm |
ÜRÜN AĞIRLIĞI (kg)
PRODUCT WEIGHT (kg) |
| FMD-RK 50x30 |
30x35x15-2
(K68-030) |
30x40x8
(K33-030 PU) |
YOK
(UNAVAILABLE) |
30x38x7/5
(K06-030 PU) |
41x4-2
(KO-0410040) |
56 | 45 | 31 | 50 | 12 | 8 | 52 | 8 | 80 | 0,606 |
| FMD-RK 50x35 |
35x40x15-2
(K68-035) |
35x45x8
(K33-035 PU) |
YOK
(UNAVAILABLE) |
35x43x7/5
(K06-035 PU) |
41x4-2
(KO-0410040) |
56 | 45 | 36 | 50 | 12 | 8 | 52 | 8 | 80 | 0,424 |
| FMD-RK 60x40 |
40x45x15-3
(K68-040) |
40x50x10
(K33-040 PU) |
YOK
(UNAVAILABLE) |
40x48x7/5
(K06-040 PU) |
52x4-2
(KO-0520040) |
66.5 | 55 | 41 | 60 | 15 | 12 | 68 | 10 | 105 | 0,968 |
| FMD-RK 63x35 |
35x40x15-2
(K68-035) |
35x45x8
(K33-035 PU) |
YOK
(UNAVAILABLE) |
35x43x7/5
(K06-035 PU) |
56x4-2
(KO-0560040) |
71 | 60 | 36 | 63 | 15 | 12 | 68 | 10 | 105 | 1,513 |
| FMD-RK 63x40 |
40x45x15-3
(K68-040) |
40x50x10
(K33-040 PU) |
YOK
(UNAVAILABLE) |
40x48x7/5
(K06-040 PU) |
56x4-2
(KO-0560040) |
71 | 60 | 41 | 63 | 15 | 12 | 68 | 10 | 105 | 1,238 |
| FMD-RK 63x45 |
45x50x15-3
(K68-045) |
45x55x10
(K33-045 PU) |
YOK
(UNAVAILABLE) |
45x55x7/5
(K06-045 PU) |
56x4-2
(KO-0560040) |
71 | 60 | 46 | 63 | 15 | 12 | 68 | 10 | 105 | 0,925 |
| FMD-RK 70x40 |
40x45x15-3
(K68-040) |
40x50x10
(K33-040 PU) |
40x55,5x6,3
(K29-040 PU) |
40x48x7/5
(K06-040 PU) |
62x4-2
(KO-0620040) |
81 | 70 | 41 | 70 | 15 | 12 | 68 | 10 | 105 | 1,877 |
| FMD-RK 70x45 |
45x50x15-3
(K68-045) |
45x55x10
(K33-045 PU) |
45x60,5x6,3
(K29-045 PU) |
45x55x7/5
(K06-045 PU) |
62x4-2
(KO-0620040) |
81 | 70 | 46 | 70 | 15 | 12 | 68 | 10 | 105 | 1,558 |
| FMD-RK 70x50 |
50x55x15-3
(K68-050) |
50x60x10
(K33-050 PU) |
YOK
(UNAVAILABLE) |
50x60x7/5
(K06-050 PU) |
62x4-2
(KO-0620040) |
81 | 70 | 51 | 70 | 15 | 12 | 68 | 10 | 105 | 1,281 |
| FMD-RK 70x55 |
55x60x15-3
(K68-055) |
55x65x10
(K33-055 PU) |
YOK
(UNAVAILABLE) |
55x65x7/5
(K06-055 PU) |
62x4-2
(KO-0620040) |
81 | 70 | 56 | 70 | 15 | 12 | 68 | 10 | 105 | 0,914 |
| FMD-RK 80x40 |
40x45x15-3
(K68-040) |
40x50x10
(K33-040 PU) |
40x55,5x6,3
(K29-040 PU) |
40x48x7/5
(K06-040 PU) |
73x4-2
(KO-0730040) |
91 | 75 | 41 | 80 | 15 | 12 | 68 | 10 | 105 | 2,744 |
| FMD-RK 80x45 |
45x50x15-3
(K68-045) |
45x55x10
(K33-045 PU) |
45x60,5x6,3
(K29-045 PU) |
45x55x7/5
(K06-045 PU) |
73x4-2
(KO-0730040) |
91 | 75 | 46 | 80 | 15 | 12 | 68 | 10 | 105 | 2,423 |
| FMD-RK 80x50 |
50x55x15-3
(K68-050) |
50x60x10
(K33-050 PU) |
50x65,5x6,3
(K29-050 PU) |
50x60x7/5
(K06-050 PU) |
73x4-2
(KO-0730040) |
91 | 75 | 51 | 80 | 15 | 12 | 68 | 10 | 105 | 2,086 |
| FMD-RK 80x55 |
55x60x15-3
(K68-055) |
55x65x10
(K33-055 PU) |
55x70,5x6,3
(K29-055 PU) |
55x65x7/5
(K06-055 PU) |
73x4-2
(KO-0730040) |
91 | 75 | 56 | 80 | 15 | 12 | 68 | 10 | 105 | 1,720 |
| FMD-RK 80x60 |
60x65x15-3
(K68-060) |
60x70x10
(K33-060/3 PU) |
YOK
(UNAVAILABLE) |
60x70x7/5
(K06-060 PU) |
73x4-2
(KO-0730040) |
91 | 75 | 61 | 80 | 15 | 12 | 68 | 10 | 105 | 1,367 |
| FMD-RK 90x40 |
40x45x15-3
(K68-040) |
40x50x10
(K33-040 PU) |
40x55,5x6,3
(K29-040 PU) |
40x48x7/5
(K06-040 PU) |
82x4-2
(KO-0820040) |
99 | 85 | 41 | 90 | 15 | 12 | 68 | 10 | 105 | 3,804 |
| FMD-RK 90x45 |
45x50x15-3
(K68-045) |
45x55x10
(K33-045 PU) |
45x60,5x6,3
(K29-045 PU) |
45x55x7/5
(K06-045 PU) |
82x4-2
(KO-0820040) |
99 | 85 | 46 | 90 | 15 | 12 | 68 | 10 | 105 | 3,480 |
| FMD-RK 90x50 |
50x55x15-3
(K68-050) |
50x60x10
(K33-050 PU) |
50x65,5x6,3
(K29-050 PU) |
50x60x7/5
(K06-050 PU) |
82x4-2
(KO-0820040) |
99 | 85 | 51 | 90 | 15 | 12 | 68 | 10 | 105 | 3,148 |
| FMD-RK 90x55 |
55x60x15-3
(K68-055) |
55x65x10
(K33-055 PU) |
55x70,5x6,3
(K29-055 PU) |
55x65x7/5
(K06-055 PU) |
82x4-2
(KO-0820040) |
99 | 85 | 56 | 90 | 15 | 12 | 68 | 10 | 105 | 2,772 |
| FMD-RK 90x60 |
60x65x15-3
(K68-060) |
60x70x10
(K33-060/3 PU) |
60x75,5X6,3
(K29-060 PU) |
60x70x7/5
(K06-060 PU) |
82x4-2
(KO-0820040) |
99 | 85 | 61 | 90 | 15 | 12 | 68 | 10 | 105 | 2,365 |
| FMD-RK 90x65 |
65x70x15-3
(K68-065) |
65x75x10
(K33-065 PU) |
65x80,5X6,3
(K29-065 PU) |
65x75x7/5
(K06-065 PU) |
82x4-2
(KO-0820040) |
99 | 85 | 66 | 90 | 15 | 12 | 68 | 10 | 105 | 1,932 |
| FMD-RK 90x70 |
70x75x15-3
(K68-070) |
70x80x12
(K33-070 PU) |
YOK
(UNAVAILABLE) |
70x80x7/5
(K06-070 PU) |
82x4-2
(KO-0820040) |
99 | 85 | 71 | 90 | 15 | 12 | 68 | 10 | 105 | 1,537 |
| FMD-RK 100x50 |
50x55x15-3
(K68-050) |
50x60x10
(K33-050 PU) |
50x65,5x6,3
(K29-050 PU) |
50x60x7/5
(K06-050 PU) |
92x4-2
(KO-0920040) |
109 | 95 | 51 | 100 | 15 | 12 | 68 | 10 | 105 | 4,355 |
| FMD-RK 100x55 |
55x60x15-3
(K68-055) |
55x65x10
(K33-055 PU) |
55x70,5x6,3
(K29-055 PU) |
55x65x7/5
(K06-055 PU) |
92x4-2
(KO-0920040) |
109 | 95 | 56 | 100 | 15 | 12 | 68 | 10 | 105 | 3,991 |
| FMD-RK 100x60 |
60x65x15-3
(K68-060) |
60x70x10
(K33-060/3 PU) |
60x75,5X6,3
(K29-060 PU) |
60x70x7/5
(K06-060 PU) |
92x4-2
(KO-0920040) |
109 | 95 | 61 | 100 | 15 | 12 | 68 | 10 | 105 | 3,582 |
| FMD-RK 100x65 |
65x70x15-3
(K68-065) |
65x75x10
(K33-065 PU) |
65x80,5X6,3
(K29-065 PU) |
65x75x7/5
(K06-065 PU) |
92x4-2
(KO-0920040) |
109 | 95 | 66 | 100 | 15 | 12 | 68 | 10 | 105 | 3,154 |
| FMD-RK 100x70 |
70x75x15-3
(K68-070) |
70x80x12
(K33-070 PU) |
70x85,5X6,3
(K29-070 PU) |
70x80x7/5
(K06-070 PU) |
92x4-2
(KO-0920040) |
109 | 95 | 71 | 100 | 15 | 12 | 68 | 10 | 105 | 2,674 |
| FMD-RK 100x75 |
75x80x15-3
(K68-075) |
75x85x12
(K33-075 PU) |
75x90,5X6,3
(K29-075 PU) |
75x87x12/7
(K06-075 PU) |
92x4-2
(KO-0920040) |
109 | 95 | 76 | 100 | 15 | 12 | 68 | 10 | 105 | 2,124 |
| FMD-RK 100x80 |
80x85x15-3
(K68-080) |
80x90x12
(K33-080 PU) |
YOK
(UNAVAILABLE) |
80x92x12/7
(K06-080 PU) |
92x4-2
(KO-0920040) |
109 | 95 | 81 | 100 | 15 | 12 | 68 | 10 | 105 | 1,687 |
| FMD-RK 110x50 |
50x55x15-3
(K68-050) |
50x60x10
(K33-050 PU) |
50x65,5x6,3
(K29-050 PU) |
50x60x7/5
(K06-050 PU) |
102x4-2
(KO-1020040) |
125 | 105 | 51 | 110 | 15 | 12 | 68 | 10 | 105 | 5,815 |
| FMD-RK 110x55 |
55x60x15-3
(K68-055) |
55x65x10
(K33-055 PU) |
55x70,5x6,3
(K29-055 PU) |
55x65x7/5
(K06-055 PU) |
102x4-2
(KO-1020040) |
125 | 105 | 56 | 110 | 15 | 12 | 68 | 10 | 105 | 5,425 |
| ÜRÜN KODU PRODUCT CODE |
YATAKLAMA
ROD GUIDE RING |
NUTRİNG ROD SEAL |
ÖN BASINÇ
RİNGİ BUFFER SEAL |
TOZ KEÇESİ WIPER |
ORİNG O-RING |
D mm |
D1 mm |
D2 mm |
D3 mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
L mm |
ÜRÜN AĞIRLIĞI (kg)
PRODUCT WEIGHT (kg) |
| FMD-RK 110x60 |
60x65x15-3
(K68-060) |
60x70x10
(K33-060/3 PU) |
60x75,5X6,3
(K29-060 PU) |
60x70x7/5
(K06-060 PU) |
102x4-2
(KO-1020040) |
125 | 105 | 61 | 110 | 15 | 12 | 68 | 10 | 105 | 5,035 |
| FMD-RK 110x65 |
65x70x15-3
(K68-065) |
65x75x10
(K33-065 PU) |
65x80,5X6,3
(K29-065 PU) |
65x75x7/5
(K06-065 PU) |
102x4-2
(KO-1020040) |
125 | 105 | 66 | 110 | 15 | 12 | 68 | 10 | 105 | 4,577 |
| FMD-RK 110x70 |
70x75x15-3
(K68-070) |
70x80x12
(K33-070 PU) |
70x85,5X6,3
(K29-070 PU) |
70x80x7/5
(K06-070 PU) |
102x4-2
(KO-1020040) |
125 | 105 | 71 | 110 | 15 | 12 | 68 | 10 | 105 | 4,105 |
| FMD-RK 110x75 |
75x80x15-3
(K68-075) |
75x85x12
(K33-075 PU) |
75x90,5X6,3
(K29-075 PU) |
75x87x12/7
(K06-075 PU) |
102x4-2
(KO-1020040) |
125 | 105 | 76 | 110 | 15 | 12 | 68 | 10 | 105 | 3,551 |
| FMD-RK 110x80 |
80x85x15-3
(K68-080) |
80x90x12
(K33-080 PU) |
80x95,5X6,3
(K29-080 PU) |
80x92x12/7
(K06-080 PU) |
102x4-2
(KO-1020040) |
125 | 105 | 81 | 110 | 15 | 12 | 68 | 10 | 105 | 3,037 |
| FMD-RK 110x85 |
85x90x15-3
(K68-085) |
85x95x12
(K33-085 PU) |
85x100,5X6,3
(K29-085 PU) |
85x97x12/7
(K06-085 PU) |
102x4-2
(KO-1020040) |
125 | 105 | 86 | 110 | 15 | 12 | 68 | 10 | 105 | 2,441 |
| FMD-RK 115x60 |
60x65x15-3
(K68-060) |
60x70x10
(K33-060/3 PU) |
60x75,5X6,3
(K29-060 PU) |
60x70x7/5
(K06-060 PU) |
108x4-2
(KO-1080040) |
125 | 105 | 61 | 115 | 15 | 12 | 68 | 10 | 105 | 5,573 |
| FMD-RK 115x65 |
65x70x15-3
(K68-065) |
65x75x10
(K33-065 PU) |
65x80,5X6,3
(K29-065 PU) |
65x75x7/5
(K06-065 PU) |
108x4-2
(KO-1080040) |
125 | 105 | 66 | 115 | 15 | 12 | 68 | 10 | 105 | 5,136 |
| FMD-RK 115x70 |
70x75x15-3
(K68-070) |
70x80x12
(K33-070 PU) |
70x85,5X6,3
(K29-070 PU) |
70x80x7/5
(K06-070 PU) |
108x4-2
(KO-1080040) |
125 | 105 | 71 | 115 | 15 | 12 | 68 | 10 | 105 | 4,648 |
| FMD-RK 115x75 |
75x80x15-3
(K68-075) |
75x85x12
(K33-075 PU) |
75x90,5X6,3
(K29-075 PU) |
75x87x12/7
(K06-075 PU) |
108x4-2
(KO-1080040) |
125 | 105 | 76 | 115 | 15 | 12 | 68 | 10 | 105 | 4,106 |
| FMD-RK 115x80 |
80x85x15-3
(K68-080) |
80x90x12
(K33-080 PU) |
80x95,5X6,3
(K29-080 PU) |
80x92x12/7
(K06-080 PU) |
108x4-2
(KO-1080040) |
125 | 105 | 81 | 115 | 15 | 12 | 68 | 10 | 105 | 3,566 |
| FMD-RK 120x60 |
60x65x15-3
(K68-060) |
60x70x10
(K33-060/3 PU) |
60x75,5X6,3
(K29-060 PU) |
60x70x7/5
(K06-060 PU) |
112x4-2
(KO-1120040) |
135 | 110 | 61 | 120 | 15 | 12 | 68 | 10 | 105 | 6,406 |
| FMD-RK 120x65 |
65x70x15-3
(K68-065) |
65x75x10
(K33-065 PU) |
65x80,5X6,3
(K29-065 PU) |
65x75x7/5
(K06-065 PU) |
112x4-2
(KO-1120040) |
135 | 110 | 66 | 120 | 15 | 12 | 68 | 10 | 105 | 5,970 |
| FMD-RK 120x70 |
70x75x15-3
(K68-070) |
70x80x12
(K33-070 PU) |
70x85,5X6,3
(K29-070 PU) |
70x80x7/5
(K06-070 PU) |
112x4-2
(KO-1120040) |
135 | 110 | 71 | 120 | 15 | 12 | 68 | 10 | 105 | 5,487 |
| FMD-RK 120x75 |
75x80x15-3
(K68-075) |
75x85x12
(K33-075 PU) |
75x90,5X6,3
(K29-075 PU) |
75x87x12/7
(K06-075 PU) |
112x4-2
(KO-1120040) |
135 | 110 | 76 | 120 | 15 | 12 | 68 | 10 | 105 | 5,488 |
| FMD-RK 120x80 |
80x85x15-3
(K68-080) |
80x90x12
(K33-080 PU) |
80x95,5X6,3
(K29-080 PU) |
80x92x12/7
(K06-080 PU) |
112x4-2
(KO-1120040) |
135 | 110 | 81 | 120 | 15 | 12 | 68 | 10 | 105 | 4,413 |
| FMD-RK 120x85 |
85x90x15-3
(K68-085) |
85x95x12
(K33-085 PU) |
85x100,5X6,3
(K29-085 PU) |
85x97x12/7
(K06-085 PU) |
112x4-2
(KO-1120040) |
135 | 110 | 86 | 120 | 15 | 12 | 68 | 10 | 105 | 3,849 |
| FMD-RK 120x90 |
90x95x15-3
(K68-090) |
90x100x12
(K33-090 PU) |
90x105,5X6,3
(K29-090 PU) |
90x102x12/7
(K06-090 PU) |
112x4-2
(KO-1120040) |
135 | 110 | 91 | 120 | 15 | 12 | 68 | 10 | 105 | 3,230 |
| FMD-RK 125x70 |
70x75x15-3
(K68-070) |
70x80x12
(K33-070 PU) |
70x85,5X6,3
(K29-070 PU) |
70x80x7/5
(K06-070 PU) |
118x4-2
(KO-1180040) |
139 | 115 | 71 | 125 | 15 | 12 | 68 | 10 | 105 | 6,253 |
| FMD-RK 125x75 |
75x80x15-3
(K68-075) |
75x85x12
(K33-075 PU) |
75x90,5X6,3
(K29-075 PU) |
75x87x12/7
(K06-075 PU) |
118x4-2
(KO-1180040) |
139 | 115 | 76 | 125 | 15 | 12 | 68 | 10 | 105 | 5,718 |
| FMD-RK 125x80 |
80x85x15-3
(K68-080) |
80x90x12
(K33-080 PU) |
80x95,5X6,3
(K29-080 PU) |
80x92x12/7
(K06-080 PU) |
118x4-2
(KO-1180040) |
139 | 115 | 81 | 125 | 15 | 12 | 68 | 10 | 105 | 5,178 |
| FMD-RK 125x90 |
90x95x15-3
(K68-090) |
90x100x12
(K33-090 PU) |
90x105,5X6,3
(K29-090 PU) |
90x102x12/7
(K06-090 PU) |
118x4-2
(KO-1180040) |
139 | 115 | 91 | 125 | 15 | 12 | 68 | 10 | 105 | 4,000 |
| FMD-RK 125x100 |
100x105x15-3
(K68-100) |
100x115x12
(K33-100 PU) |
100x115,5X6,3
(K29-100 PU) |
100x112x12/7
(K06-100 PU) |
118x4-2
(KO-1180040) |
139 | 115 | 101 | 125 | 15 | 12 | 68 | 10 | 105 | 2,608 |
| FMD-RK 130x70 |
70x75x15-3
(K68-070) |
70x80x12
(K33-070 PU) |
70x85,5X6,3
(K29-070 PU) |
70x80x7/5
(K06-070 PU) |
122x4-2
(KO-1220040) |
145 | 125 | 71 | 130 | 15 | 12 | 68 | 10 | 105 | 7,212 |
| FMD-RK 130x75 |
75x80x15-3
(K68-075) |
75x85x12
(K33-075 PU) |
75x90,5X6,3
(K29-075 PU) |
75x87x12/7
(K06-075 PU) |
122x4-2
(KO-1220040) |
145 | 125 | 76 | 130 | 15 | 12 | 68 | 10 | 105 | 6,670 |
| FMD-RK 130x80 |
80x85x15-3
(K68-080) |
80x90x12
(K33-080 PU) |
80x95,5X6,3
(K29-080 PU) |
80x92x12/7
(K06-080 PU) |
122x4-2
(KO-1220040) |
145 | 125 | 81 | 130 | 15 | 12 | 68 | 10 | 105 | 6,123 |
| FMD-RK 130x85 |
85x90x15-3
(K68-085) |
85x95x12
(K33-085 PU) |
85x100,5X6,3
(K29-085 PU) |
85x97x12/7
(K06-085 PU) |
122x4-2
(KO-1220040) |
145 | 125 | 86 | 130 | 15 | 12 | 68 | 10 | 105 | 5,552 |
| FMD-RK 130x90 |
90x95x15-3
(K68-090) |
90x100x12
(K33-090 PU) |
90x105,5X6,3
(K29-090 PU) |
90x102x12/7
(K06-090 PU) |
122x4-2
(KO-1220040) |
145 | 125 | 91 | 130 | 15 | 12 | 68 | 10 | 105 | 4,935 |
| FMD-RK 130x95 |
95x100x15-3
(K68-095) |
95x105x12
(K33-095 PU) |
95x110,5x6,3
(K29-095 PU) |
95x107x12/7
(K06-095 PU) |
122x4-2
(KO-1220040) |
145 | 125 | 96 | 130 | 15 | 12 | 68 | 10 | 105 | 4,316 |
| FMD-RK 130x100 |
100x105x15-3
(K68-100) |
100x115x12
(K33-100 PU) |
100x115,5X6,3
(K29-100 PU) |
100x112x12/7
(K06-100 PU) |
122x4-2
(KO-1220040) |
145 | 125 | 101 | 130 | 15 | 12 | 68 | 10 | 105 | 3,585 |
| FMD-RK 140x60 |
60x65x15-3
(K68-060) |
60x70x10
(K33-060/3 PU) |
60x75,5X6,3
(K29-060 PU) |
60x70x7/5
(K06-060 PU) |
132x4-2
(KO-1320040) |
155 | 130 | 61 | 140 | 15 | 12 | 68 | 10 | 105 | 9,755 |
| FMD-RK 140x70 |
70x75x15-3
(K68-070) |
70x80x12
(K33-070 PU) |
70x85,5X6,3
(K29-070 PU) |
70x80x7/5
(K06-070 PU) |
132x4-2
(KO-1320040) |
155 | 130 | 71 | 140 | 15 | 12 | 68 | 10 | 105 | 8,804 |
| FMD-RK 140x80 |
80x85x15-3
(K68-080) |
80x90x12
(K33-080 PU) |
80x95,5X6,3
(K29-080 PU) |
80x92x12/7
(K06-080 PU) |
132x4-2
(KO-1320040) |
155 | 130 | 81 | 140 | 15 | 12 | 68 | 10 | 105 | 7,723 |
| FMD-RK 140x85 |
85x90x15-3
(K68-085) |
85x95x12
(K33-085 PU) |
85x100,5X6,3
(K29-085 PU) |
85x97x12/7
(K06-085 PU) |
132x4-2
(KO-1320040) |
155 | 130 | 86 | 140 | 15 | 12 | 68 | 10 | 105 | 7,168 |
| FMD-RK 140x90 |
90x95x15-3
(K68-090) |
90x100x12
(K33-090 PU) |
90x105,5X6,3
(K29-090 PU) |
90x102x12/7
(K06-090 PU) |
132x4-2
(KO-1320040) |
155 | 130 | 91 | 140 | 15 | 12 | 68 | 10 | 105 | 6,575 |
| FMD-RK 140x95 |
95x100x15-3
(K68-095) |
95x105x12
(K33-095 PU) |
95x110,5x6,3
(K29-095 PU) |
95x107x12/7
(K06-095 PU) |
132x4-2
(KO-1320040) |
155 | 130 | 96 | 140 | 15 | 12 | 68 | 10 | 105 | 5,940 |
| FMD-RK 140x100 |
100x105x15-3
(K68-100) |
100x115x12
(K33-100 PU) |
100x115,5X6,3
(K29-100 PU) |
100x112x12/7
(K06-100 PU) |
132x4-2
(KO-1320040) |
155 | 130 | 101 | 140 | 15 | 12 | 68 | 10 | 105 | 5,166 |
| FMD-RK 140x110 |
115X110X14,8-3
(K69-115/6) |
110x125x12
(K33-110/1 PU) |
110x125,5X6,3
(K29-110 PU) |
110x122x12/7
(K06-110 PU) |
132x4-2
(KO-1320040) |
155 | 130 | 111 | 140 | 15 | 12 | 68 | 10 | 105 | 3,725 |
| FMD-RK 150x90 |
90x95x15-3
(K68-090) |
90x100x12
(K33-090 PU) |
90x105,5X6,3
(K29-090 PU) |
90x102x12/7
(K06-090 PU) |
142x4-2
(KO-1420040) |
165 | 130 | 91 | 150 | 15 | 12 | 68 | 10 | 105 | 8,166 |
| FMD-RK 150x100 |
100x105x15-3
(K68-100) |
100x115x12
(K33-100 PU) |
100x115,5X6,3
(K29-100 PU) |
100x112x12/7
(K06-100 PU) |
142x4-2
(KO-1420040) |
165 | 130 | 101 | 150 | 15 | 12 | 68 | 10 | 105 | 6,574 |
| FMD-RK 150x110 |
115X110X14,8-3
(K69-115/6) |
110x125x12
(K33-110/1 PU) |
110x125,5X6,3
(K29-110 PU) |
110x122x12/7
(K06-110 PU) |
142x4-2
(KO-1420040) |
165 | 130 | 111 | 150 | 15 | 12 | 68 | 10 | 105 | 5,325 |
| FMD-RK 150x120 |
120x125x15-3
(K68-120) |
120x135x15
(K33-120/1 PU) |
120x135,5X6,3
(K29-120 PU) |
120x132x12/7
(K06-120 PU) |
142x4-2
(KO-1420040) |
165 | 130 | 121 | 150 | 15 | 12 | 68 | 10 | 105 | 3,944 |
| FMD-RK 160x100 |
100x105x15-3
(K68-100) |
100x115x12
(K33-100 PU) |
100x115,5X6,3
(K29-100 PU) |
100x112x12/7
(K06-100 PU) |
152x4-2
(KO-1520040) |
175 | 150 | 101 | 160 | 15 | 12 | 68 | 10 | 105 | 8,992 |
| FMD-RK 160x110 |
115X110X14,8-3
(K69-115/6) |
110x125x12
(K33-110/1 PU) |
110x125,5X6,3
(K29-110 PU) |
110x122x12/7
(K06-110 PU) |
152x4-2
(KO-1520040) |
175 | 150 | 111 | 160 | 15 | 12 | 68 | 10 | 105 | 5,937 |
| FMD-RK 160x120 |
120x125x15-3
(K68-120) |
120x135x15
(K33-120/1 PU) |
120x135,5X6,3
(K29-120 PU) |
120x132x12/7
(K06-120 PU) |
152x4-2
(KO-1520040) |
175 | 150 | 121 | 160 | 15 | 12 | 68 | 10 | 105 | 5,850 |
| FMD-RK 160x130 |
130x135x15-3
(K68-130) |
130x150x15
(K33-130/2 PU) |
130x145,5X6,3
(K29-130 PU) |
130x142x12/7
(K06-130/1 PU) |
152x4-2
(KO-1520040) |
175 | 150 | 131 | 160 | 15 | 12 | 68 | 10 | 105 | 4,096 |
| FMD-RK 170x120 |
120x125x15-3
(K68-120) |
120x135x15
(K33-120/1 PU) |
120x135,5X6,3
(K29-120 PU) |
120x132x12/7
(K06-120 PU) |
162x4-2
(KO-1620040) |
189 | 160 | 121 | 170 | 15 | 12 | 68 | 10 | 105 | 8,200 |
| FMD-RK 180x140 |
140x145x15-3
(K68-140) |
140x160x15
(K33-140 PU) |
140x155,5X6,3
(K29-140 PU) |
140x152x12/7
(K06-140/6 PU) |
172x4-2
(KO-2600040) |
205 | 160 | 141 | 180 | 15 | 12 | 68 | 10 | 105 | 7,078 |
