| ÜRÜN KODU PRODUCT CODE |
KOMPAKT SET
COMPACT PISTON SEAL |
ORİNG O-RING |

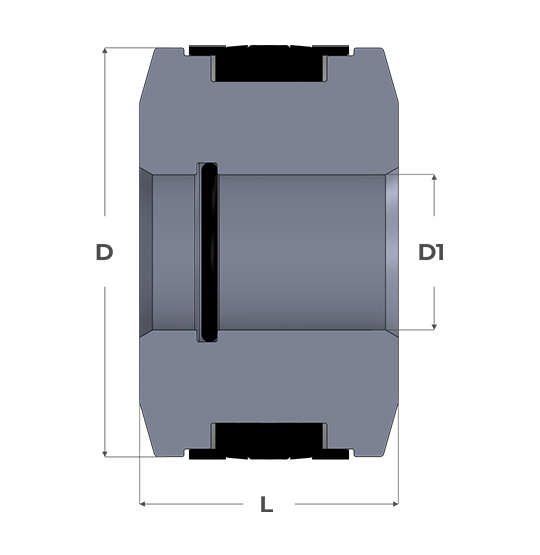

D mm |
D1
mm |
L mm |
ÜRÜN AĞIRLIĞI (kg)
PRODUCT WEIGHT (kg) |
| FMD-DP 32x15 |
32x24x15,5
(K18 032-024) |
YOK (UNAVAILABLE |
32 | 15 | 32 | 0,101 |
| FMD-DP 35x16 |
35x25x16,4
(K18 035-025) |
16x3 (KO-0160030) |
35 | 16 | 40 | 0,142 |
| FMD-DP 40x16 |
40x32x15,5
(K18 040-032) |
16x3 (KO-0160030) |
40 | 16 | 40 | 0,244 |
| FMD-DP 40x20 |
40x32x15,5
(K18 040-032) |
20x3 (KO-0200030) |
40 | 20 | 40 | 0,205 |
| FMD-DP 45x20 |
45x35x16,4
(K18 045-035) |
20x3 (KO-0200030) |
45 | 20 | 40 | 0,226 |
| FMD-DP 50x16 |
50x38x20,5
(K18 050-038) |
16x3 (KO-0160030) |
50 | 16 | 40 | 0,371 |
| FMD-DP 50x20 |
50x38x20,5
(K18 050-038) |
20x3 (KO-0200030) |
50 | 20 | 40 | 0,335 |
| FMD-DP 50x24 |
50x38x20,5
(K18 050-038) |
24x3 (KO-0200030) |
50 | 24 | 40 | 0,268 |
| FMD-DP 50x30 |
50x38x20,5
(K18 050-038) |
30x3 (KO-0300030) |
50 | 30 | 40 | 0,211 |
| FMD-DP 55x20 |
55x39x20,5
(K18 055-039) |
20x3 (KO-0200030) |
55 | 20 | 40 | 0,405 |
| FMD-DP 60x20 |
60x48x20,5
(K18 060-048) |
20x3 (KO-0200030) |
60 | 20 | 40 | 0,557 |
| FMD-DP 63x20 |
63x51x20,5
(K18 063-051) |
20x3 (KO-0200030) |
63 | 20 | 40 | 0,645 |
| FMD-DP 63x25 |
63x51x20,5
(K18 063-051) |
25x3 (KO-0250030) |
63 | 25 | 40 | 0,586 |
| FMD-DP 63x30 |
63x51x20,5
(K18 063-051) |
30x3 (KO-0300030) |
63 | 30 | 40 | 0,517 |
| FMD-DP 65x25 |
65x49x20,5
(K18 065-049) |
25x3 (KO-0250030) |
65 | 25 | 40 | 0,603 |
| FMD-DP 70x25 |
70x58x20,5
(K18 070-058) |
25x3 (KO-0250030) |
70 | 25 | 40 | 0,79 |
| FMD-DP 70x30 |
70x58x20,5
(K18 070-058) |
30x3 (KO-0300030) |
70 | 30 | 40 | 0,715 |
| FMD-DP 75x32 |
75x55x22,4
(K18 075-055) |
32x3 (KO-0320030) |
75 | 32 | 50 | 0,908 |
| FMD-DP 80x27 |
80x66x22,4
(K18 080-066) |
27x3 (KO-0270030) |
80 | 27 | 50 | 1,339 |
| FMD-DP 80x30 |
80x66x22,4
(K18 080-066) |
30x3 (KO-0300030) |
80 | 30 | 50 | 1,285 |
| FMD-DP 85x32 |
85x65x22,4
(K18 085-065) |
32x3 (KO-0320030) |
85 | 32 | 50 | 1,336 |
| FMD-DP 90x30 |
90x76x22,4
(K18 090-076) |
30x3 (KO-0300030) |
90 | 30 | 50 | 1,732 |
| FMD-DP 100x33 |
100x86x22,4
(K18 100-086) |
33x3 (KO-0330030) |
100 | 33 | 50 | 2,186 |
| FMD-DP 100x40 |
100x86x22,4
(K18 100-086) |
40x4 (KO-0400040) |
100 | 40 | 50 | 2,028 |
| FMD-DP 110x40 |
110x96x22,4
(K18 110-096) |
40x4 (KO-0400040) |
110 | 40 | 50 | 2,618 |
| FMD-DP 115x40 |
115x101x22,4
(K18 115-101) |
40x4 (KO-0400040) |
115 | 40 | 50 | 2,938 |
| FMD-DP 120x40 |
120x106x22,4
(K18 120-106) |
40x4 (KO-0400040) |
120 | 40 | 50 | 3,259 |
| FMD-DP 125x40 |
125x103x26,5
(K18 125-103) |
40x4 (KO-0400040) |
125 | 40 | 50 | 3,296 |
| FMD-DP 130x40 |
130x105x25,4
(K18 130-105) |
40x4 (KO-0400040) |
130 | 40 | 60 | 4,34 |
| FMD-DP 140x40 |
140x123x26,5
(K18 140-123) |
40x4 (KO-0400040) |
140 | 40 | 60 | 5,582 |
| FMD-DP 150x40 |
150x125x25,4
(K18 150-125/1) |
40x4 (KO-0400040) |
150 | 40 | 60 | 6,17 |
| FMD-DP 160x50 |
160x143x26,5
(K18 160-143) |
50x4 (KO-0500040) |
160 | 50 | 60 | 7,285 |
| FMD-DP 170x50 |
170x145x25,4
(K18 170-145) |
50x4 (KO-0500040) |
170 | 50 | 65 | 8,688 |
| FMD-DP 180x50 |
180x163x26,5
(K18 180-163) |
50x4 (KO-0500040) |
180 | 50 | 60 | 9,614 |
| FMD-DP 190x50 |
190x165x25,4/12,7
(K18 190-165) |
50x4 (KO-0500040) |
190 | 50 | 65 | 11,26 |
| FMD-DP 200x55 |
200x175x25,4/12,7
(K18 200-175/1) |
55x4 (KO-0550040) |
200 | 55 | 65 | 12,657 |
| FMD-DP 220x70 |
220x190x35,4/6,35
(K18 220-190/1) |
70x4 (KO-0700040) |
220 | 70 | 70 | 15,705 |
| FMD-DP 250x80 |
250x225x25,4
(K18 250-225) |
80x4 (KO-0800040) |
250 | 80 | 70 | 21,405 |
