ÜRÜN KODU
PRODUCT CODE |
KOMPAKT SET
COMPACT PISTON SEAL |
ORİNG O-RING |

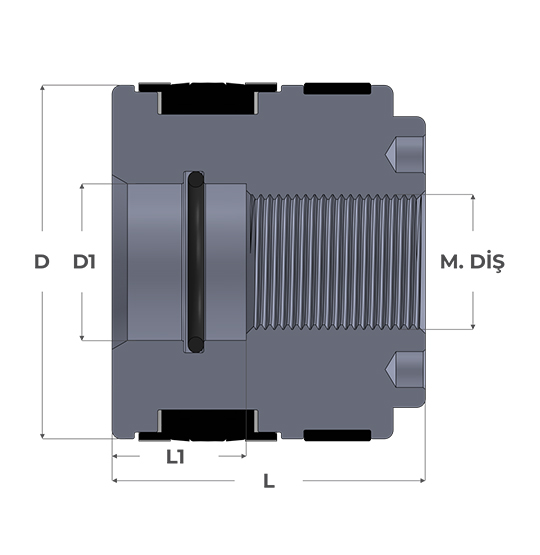

D mm |
D1 mm |
L mm |
L1 mm |
METRİK DİŞ
METRIC THREAD |
ÜRÜN AĞIRLIĞI (kg)
PRODUCT WEIGHT (kg) |
| FMD-TYVP 50 | 50x38x20,5 (K18 050-038) |
24,99x3,53
(KO-0249935) |
50 | 25 | 65 | 30 | 22x1,5 | 0,533 |
| FMD-TYVP 60 | 60x48x20,5 (K18 060-048) |
29,75x3,53
(KO-0297535) |
60 | 30 | 65 | 30 | 27x2 | 0,82 |
| FMD-TYVP 63 | 63x51x20,5 (K18 063-051) |
29,75x3,53
(KO-0297535) |
63 | 30 | 65 | 30 | 27x2 | 0,94 |
| FMD-TYVP 70 | 70x58x20,5 (K18 070-058) |
29,75x3,53
(KO-0297535) |
70 | 30 | 65 | 30 | 27x2 | 1,263 |
| FMD-TYVP 80 | 80x66x22,4 (K18 080-066) |
34,52x3,53
(KO-0345235) |
80 | 35 | 70 | 30 | 30x2 | 1,794 |
| FMD-TYVP 90 | 90x76x22,4 (K18 090-076) |
39,69x3,53
(KO-0396935) |
90 | 40 | 70 | 30 | 35x2 | 2,315 |
| FMD-TYVP 100 |
100x86x22,4
(K18 100-086) |
45x4
(KO-0450040) |
100 | 45 | 70 | 30 | 40x2 | 2,846 |
| FMD-TYVP 110 |
110x96x22,4
(K18 110-096) |
45x4
(KO-0450040) |
110 | 45 | 70 | 30 | 40x2 | 3,68 |
| FMD-TYVP 115 |
115x101x22,4
(K18 115-101) |
45x4
(KO-0450040) |
115 | 45 | 70 | 30 | 40x2 | 4,129 |
| FMD-TYVP 120 |
120x106x22,4
(K18 120-106) |
50x4
(KO-0500040) |
120 | 50 | 70 | 30 | 45x2 | 4,41 |
| FMD-TYVP 125 |
125x103x26,5
(K18 125-103) |
60x4
(KO-0600040) |
125 | 60 | 70 | 30 | 50x2 | 4,24 |
| FMD-TYVP 130 |
130x105x25,4
(K18 130-105) |
60x4
(KO-0600040) |
130 | 60 | 70 | 30 | 50x2 | 4,597 |
| FMD-TYVP 140 |
140x123x26,5
(K18 140-123) |
60x4
(KO-0600040) |
140 | 60 | 80 | 30 | 55x2 | 6,738 |
| FMD-TYVP 150 |
150x125x25,4/6,35
(K18 150-125/1) |
65x4
(KO-0650040) |
150 | 65 | 80 | 30 | 60x2 | 7,133 |
| FMD-TYVP 160 |
160x143x26,5
(K18 160-143) |
65x4
(KO-0650040) |
160 | 65 | 80 | 30 | 60x2 | 9,254 |
| FMD-TYVP 170 |
170x145x25,4
(K18 170-145) |
70x4
(KO-0700040) |
170 | 70 | 90 | 30 | 65x2 | 11,3 |
| FMD-TYVP 180 |
180x163x26,5
(K18 180-163) |
75x4
(KO-0750040) |
180 | 75 | 80 | 30 | 70x2 | 11,6 |
| FMD-TYVP 190 |
(190x165x25,4/12,7)
(K18 190-165) |
85x4
(KO-0850040) |
190 | 85 | 90 | 40 | 75x2 | 14,014 |
| FMD-TYVP 200 |
200x175x25,4/12,7
(K18 200-175/1) |
80x5
(KO-0800050) |
200 | 80 | 90 | 40 | 75x2 | 16,082 |
| FMD-TYVP 220 |
220x190x35,4/6,35
(K18 220-190/1) |
100x5
(KO-1000050) |
220 | 100 | 90 | 40 | 95x2 | 17,406 |
| FMD-TYVP 230 |
230x205x25,4
(K18 230-205) |
100x5
(KO-1000050) |
230 | 100 | 90 | 40 | 95x2 | 20,951 |
| FMD-TYVP 250 |
250x225x25,4
(K18 250-225) |
100x5
(KO-1000050) |
250 | 100 | 90 | 40 | 95x2 | 25,448 |
| FMD-TYVP 260 |
260x235x35,4
(K18 260-235) |
100x5
(KO-1000050) |
260 | 100 | 100 | 40 | 95x2 | 31,245 |
| FMD-TYVP 270 |
270x245x25,4
(K18 270-245) |
100x5
(K04000050) |
270 | 100 | 90 | 40 | 95x2 | 31,206 |
