| ÜRÜN KODU PRODUCT CODE |
YATAKLAMA
PISTON GUIDE RING |
KOMPAKT SET
COMPACT PISTON SEAL |
ORİNG O-RING |
METRİK DİŞ
METRIC THREAD |

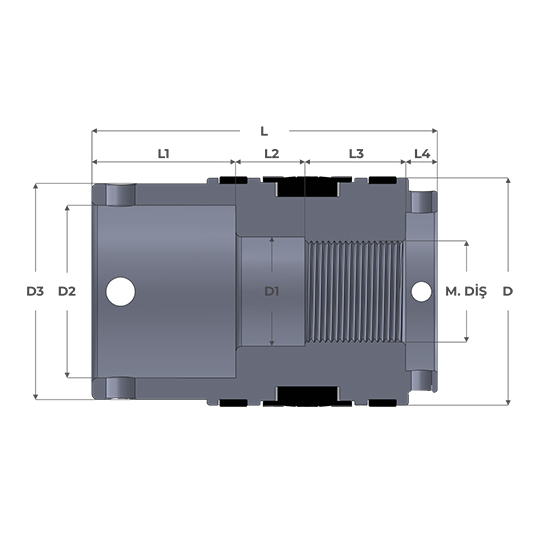

D mm |
D1 mm |
D2 mm |
D3 mm |
L1 mm |
L2 mm |
L3 mm |
L4 mm |
L mm |
ÜRÜN AĞIRLIĞI (kg)
PRODUCT WEIGHT (kg) |
| FMD-RP 63 | 58x63x9,5-2 (K68-058) |
63x51x20,5
(K18 063-051) |
27x4
(KO-0270040) |
32x2 | 63 | 35 | 48 | 58 | 50 | 24 | 35 | 11 | 120 | 1,165 |
| FMD-RP 70 |
65x70x9,5-2
(K68-065/5) |
70x58x20,5
(K18 070-058) |
30x4
(KO-0300040) |
35x2 | 70 | 38 | 50 | 65 | 50 | 24 | 35 | 11 | 120 | 1,613 |
| FMD-RP 80 |
75x80x9,5-2
(K68-075/3) |
80x66x22,4
(K18 080-066) |
30x4
(KO-0300040) |
35x2 | 80 | 38 | 60 | 75 | 50 | 24 | 35 | 11 | 120 | 2,275 |
| FMD-RP 90 |
85x90x9,5-2
(K68-085/4) |
90x76x22,4
(K18 090-076) |
35x4
(KO-0350040) |
40x2 | 90 | 43 | 70 | 85 | 50 | 24 | 35 | 11 | 120 | 2,515 |
| FMD-RP 100 |
95x100x9,5-2
(K68-095/2) |
100x86x22,4
(K18 100-086) |
40x4
(KO-0400040) |
45x2 | 100 | 48 | 75 | 95 | 50 | 24 | 35 | 11 | 120 | 3,556 |
| FMD-RP 110 |
105x110x9,5-2
(K68-105/2) |
110x96x22,4
(K18 110-096) |
45x4
(KO-0450040) |
50x2 | 110 | 53 | 80 | 105 | 50 | 24 | 35 | 11 | 120 | 4,509 |
| FMD-RP 115 |
110x115x9,5-2
(K68-110/1) |
115x101x22,4
(K18 115-101) |
45x4
(KO-0450040) |
50x2 | 115 | 53 | 85 | 110 | 50 | 24 | 35 | 11 | 120 | 4,973 |
| FMD-RP 120 |
115x120x9,5-2
(K68-115/2) |
120x106x22,4
(K18 120-106) |
55x4
(KO-0550040) |
60x2 | 120 | 63 | 95 | 115 | 50 | 24 | 35 | 11 | 120 | 4,775 |
| FMD-RP 125 |
120x125x9,5-2
(K68-120/2) |
125x103x26,5
(K18 125-103) |
55x4
(KO-0550040) |
60x2 | 125 | 63 | 100 | 120 | 50 | 24 | 35 | 11 | 120 | 4,882 |
| FMD-RP 130 |
125x130x9,7-2
(K68-125/3) |
130x105x25,4
(K18 130-105) |
55x4
(KO-0550040) |
60x2 | 130 | 63 | 100 | 125 | 50 | 24 | 35 | 11 | 120 | 5,058 |
| FMD-RP 140 |
140x135x9,5-2
(K69-140/1) |
140x123x26,5
(K18 140-123) |
55x4
(KO-0550040) |
60x2 | 140 | 63 | 110 | 135 | 50 | 24 | 35 | 11 | 120 | 6,945 |
| FMD-RP 150 |
150x145x9,5-2
(K69-150/2) |
150x125x25,4
(K18 150425) |
55x4
(KO-0550040) |
60x2 | 150 | 63 | 120 | 145 | 50 | 24 | 35 | 11 | 120 | 7,756 |
| FMD-RP 160 |
160x155x9,5-2
(K69-160/2) |
160x143x26,5
(K18 160-143) |
55x4
(KO-0550040) |
60x2 | 160 | 63 | 130 | 155 | 50 | 24 | 35 | 11 | 120 | 9,631 |
| FMD-RP 170 |
170x165x9,5-2
(K73-165) |
170x145x25,4
(K18 170-145) |
55x4
(KO-0550040) |
60x2 | 170 | 63 | 140 | 165 | 50 | 24 | 35 | 11 | 120 | 9,104 |
