ÜRÜN KODU
PRODUCT CODE |
NUTRİNG
PISTON ROD SEAL |
YATAKLAMA
PISTON GUIDE RING |
ORİNG O-RING |

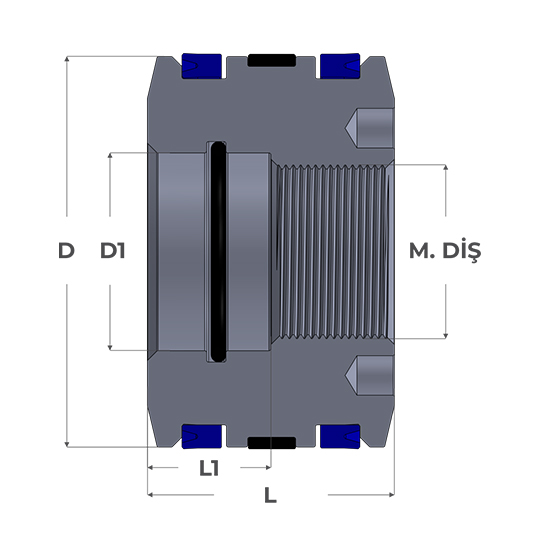

D mm |
D1 mm |
L mm |
L1 mm |
METRİK DİŞ
METRIC THREAD |
ÜRÜN AĞIRLIĞI (kg)
PRODUCT WEIGHT (kg) |
| FMD-ÇNVP 40 |
30x40x6-2
(K21-030/9 PU) |
35x40x5.4 (K68-035/4) |
22x3 (KO-0220030) |
40 | 22 | 40 | 20 | 20x1,5 | 0,189 |
| FMD-ÇNVP 50 |
40x50x6-2
(K21-040/1 PU) |
45x50x5.4 (K68-045/5) |
25x3 (KO-0250030) |
50 | 25 | 40 | 20 | 22x1,5 | 0,355 |
| FMD-ÇNVP 60 |
50x60x6-2
(K21-050/13 PU) |
55X60X5,4 (K68-055/6) |
30x3 (KO-0300030) |
60 | 30 | 40 | 15 | 26x1,5 | 0,55 |
| FMD-ÇNVP 63 |
53x63x6-2
(K21-053/5 PU) |
58X63X5,4 (K68-058/1) |
35x3 (KO-0350030) |
63 | 35 | 40 | 15 | 30x1,5 | 0,568 |
| FMD-ÇNVP 70 |
60x70x6-2
(K21-060/6 PU) |
65X70X5,4 (K68-065/2) |
40x3 (KO-0400030) |
70 | 40 | 40 | 15 | 35x1,5 | 0,678 |
| FMD-ÇNVP 80 |
70x80x8-2
(K21-070/10 PU) |
75X80X9.5 (K68-075/3) |
40x3 (KO-0400030) |
80 | 40 | 50 | 25 | 35x1,5 | 1,253 |
| FMD-ÇNVP 90 |
80x90x10-2
(K21-080/9 PU) |
85X90X9.7 (K68-085/3) |
50x4 (KO-0500040) |
90 | 50 | 50 | 25 | 45x1,5 | 1,433 |
| FMD-ÇNVP 100 |
85x100x9-2
(K21-085/8 PU) |
95X100X9.5
(K68-095/2) |
50x4 (KO-0500040) |
100 | 50 | 50 | 25 | 45x1,5 | 1,892 |
