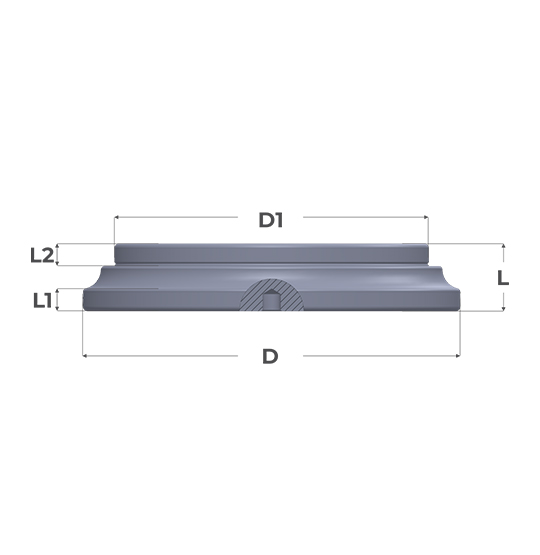

ÜRÜN KODU
PRODUCT CODE |
L mm |
L1 mm |
L2 mm |
D mm |
D1 mm |
ÜRÜN AĞIRLIĞI (kg)
PRODUCT WEIGHT (kg) |
| FMD-BTAK 32x40 | 15 | 5 | 5 | 40 | 32 | 0,117 |
| FMD-BTAK 35x45 | 15 | 5 | 5 | 45 | 35 | 0,147 |
| FMD-BTAK 40x50 | 15 | 5 | 5 | 50 | 40 | 0,185 |
| FMD-BTAK 45x55 | 15 | 5 | 5 | 55 | 45 | 0,229 |
| FMD-BTAK 50x60 | 15 | 5 | 5 | 60 | 50 | 0,276 |
| FMD-BTAK 50x65 | 15 | 5 | 5 | 65 | 50 | 0,304 |
| FMD-BTAK 55x65 | 15 | 5 | 5 | 65 | 55 | 0,33 |
| FMD-BTAK 60x70 | 15 | 5 | 5 | 70 | 60 | 0,39 |
| FMD-BTAK 60x80 | 15 | 5 | 5 | 80 | 60 | 0,45 |
| FMD-BTAK 63x75 | 15 | 5 | 5 | 75 | 63 | 0,439 |
| FMD-BTAK 65x80 | 15 | 5 | 5 | 80 | 65 | 0,487 |
| FMD-BTAK 70x85 | 15 | 5 | 5 | 85 | 70 | 0,553 |
| FMD-BTAK 70x90 | 15 | 5 | 5 | 90 | 70 | 0,588 |
| FMD-BTAK 75x90 | 15 | 5 | 5 | 90 | 75 | 0,646 |
| FMD-BTAK 80x95 | 15 | 5 | 5 | 95 | 80 | 0,713 |
| FMD-BTAK 80x100 | 15 | 5 | 5 | 100 | 80 | 0,736 |
| FMD-BTAK 85x100 | 20 | 9 | 5 | 100 | 85 | 1,069 |
| FMD-BTAK 90x105 | 20 | 9 | 5 | 105 | 90 | 1,182 |
| FMD-BTAK 90x110 | 20 | 9 | 5 | 110 | 90 | 1,45 |
| FMD-BTAK 100x115 | 20 | 9 | 5 | 115 | 100 | 1,45 |
| FMD-BTAK 100x120 | 20 | 9 | 5 | 120 | 100 | 1,531 |
| FMD-BTAK 110x130 | 20 | 9 | 5 | 130 | 110 | 1,812 |
| FMD-BTAK 115x130 | 20 | 9 | 5 | 130 | 115 | 1,839 |
| FMD-BTAK 120x140 | 20 | 9 | 5 | 140 | 120 | 2,125 |
| FMD-BTAK 125x145 | 20 | 9 | 5 | 145 | 125 | 2,306 |
| FMD-BTAK 125x150 | 20 | 9 | 5 | 150 | 125 | 2,413 |
| FMD-BTAK 130X150 | 20 | 9 | 5 | 150 | 130 | 2,459 |
| FMD-BTAK 140x160 | 20 | 9 | 5 | 160 | 140 | 2,801 |
| FMD-BTAK 150x170 | 20 | 9 | 5 | 170 | 150 | 3,221 |
| FMD-BTAK 150x180 | 20 | 9 | 5 | 180 | 150 | 3,247 |
| FMD-BTAK 160x180 | 20 | 9 | 5 | 180 | 160 | 3,619 |
| FMD-BTAK 160x190 | 25 | 11 | 5 | 190 | 160 | 4,857 |
| FMD-BTAK 170x200 | 25 | 11 | 5 | 200 | 170 | 5,403 |
| FMD-BTAK 180x210 | 25 | 11 | 5 | 210 | 180 | 5,995 |
| FMD-BTAK 190x230 | 25 | 11 | 5 | 230 | 190 | 7,122 |
| FMD-BTAK 200x230 | 25 | 11 | 5 | 230 | 200 | 7,268 |
| FMD-BTAK 200x245 | 30 | 11 | 5 | 245 | 200 | 9,506 |
| FMD-BTAK 220x250 | 30 | 11 | 8 | 250 | 220 | 10,173 |
| FMD-BTAK 220x270 | 30 | 11 | 8 | 270 | 220 | 11,433 |
| FMD-BTAK 230x280 | 30 | 11 | 8 | 280 | 230 | 12,264 |
| FMD-BTAK 250x300 | 30 | 11 | 8 | 300 | 250 | 14,32 |
| FMD-BTAK 270x320 | 30 | 11 | 8 | 320 | 270 | 16,547 |
