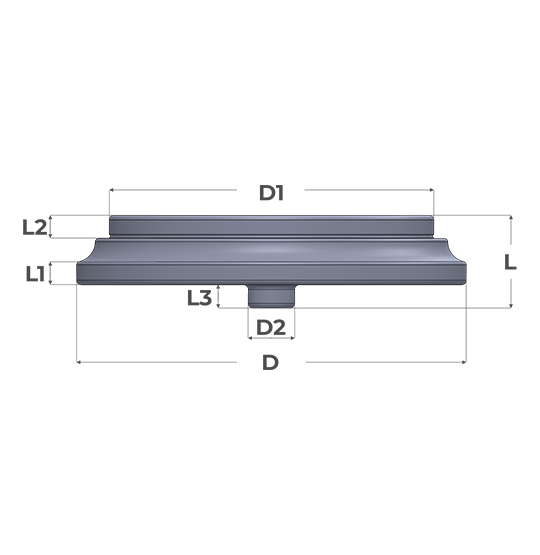

ÜRÜN KODU
PRODUCT CODE |
L mm |
L1 mm |
L2 mm |
L3 mm |
D mm |
D1 mm |
D2 mm |
ÜRÜN AĞIRLIĞI (kg)
PRODUCT WEIGHT (kg) |
| FMD-FAK 50x60 | 20 | 5 | 5 | 5 | 60 | 50 | 10 | 0,281 |
| FMD-FAK 63X75 | 20 | 5 | 5 | 5 | 75 | 63 | 10 | 0,441 |
| FMD-FAK 70x85 | 20 | 5 | 5 | 5 | 85 | 70 | 10 | 0,556 |
| FMD-FAK 80x95 | 20 | 5 | 5 | 5 | 95 | 80 | 10 | 0,708 |
| FMD-FAK 90x105 | 25 | 9 | 5 | 5 | 105 | 90 | 10 | 1,197 |
| FMD-FAK 90x110 | 25 | 9 | 5 | 5 | 110 | 90 | 10 | 1,279 |
| FMD-FAK 100x115 | 25 | 9 | 5 | 5 | 115 | 100 | 10 | 1,451 |
| FMD-FAK 110X130 | 25 | 9 | 5 | 5 | 130 | 110 | 10 | 1,819 |
| FMD-FAK 120X140 | 25 | 9 | 5 | 5 | 140 | 120 | 10 | 1,871 |
| FMD-FAK 125X145 | 25 | 9 | 5 | 5 | 145 | 125 | 10 | 2,342 |
| FMD-FAK 130X150 | 25 | 9 | 5 | 5 | 150 | 130 | 10 | 2,5 |
| FMD-FAK 140X160 | 25 | 9 | 5 | 5 | 160 | 140 | 10 | 2,863 |
