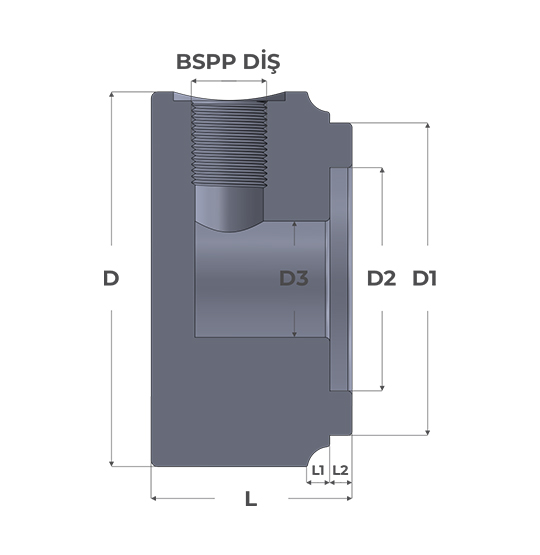

| ÜRÜN KODU PRODUCT CODE |
D mm |
D1 mm |
D2 mm |
D3 mm |
L mm |
L1 mm |
L2 mm |
BSPP DİŞ
BSPP THREAD |
ÜRÜN AĞIRLIĞI (kg)
PRODUCT WEIGHT (kg) |
| FMD-YGAK 40x50 | 50 | 40 | 28 | 21 | 45 | 5 | 5 | 1/4" | 0,505 |
| FMD-YGAK 50x60 | 60 | 50 | 35 | 21 | 45 | 5 | 5 | 3/8" | 0,769 |
| FMD-YGAK 60x70 | 70 | 60 | 45 | 26 | 45 | 5 | 5 | 3/8" | 1,04 |
| FMD-YGAK 63x75 | 75 | 63 | 45 | 26 | 45 | 5 | 5 | 3/8" | 1,214 |
| FMD-YGAK 65x80 | 80 | 65 | 50 | 26 | 45 | 5 | 5 | 3/8" | 1,383 |
| FMD-YGAK 70x85 | 85 | 70 | 50 | 26 | 45 | 5 | 5 | 3/8" | 1,61 |
| FMD-YGAK 75x90 | 90 | 75 | 55 | 30 | 45 | 5 | 5 | 3/8" | 1,779 |
| FMD-YGAK 80x95 | 95 | 80 | 60 | 30 | 45 | 5 | 5 | 3/8" | 2,01 |
| FMD-YGAK 80x100 | 100 | 80 | 60 | 30 | 45 | 5 | 5 | 3/8" | 2,234 |
| FMD-YGAK 85x100 | 100 | 85 | 65 | 30 | 45 | 5 | 5 | 3/8" | 2,271 |
| FMD-YGAK 90x105 | 105 | 90 | 70 | 30 | 45 | 5 | 5 | 3/8" | 2,504 |
| FMD-YGAK 90x110 | 110 | 90 | 70 | 30 | 45 | 5 | 5 | 3/8" | 2,764 |
| FMD-YGAK 100x115 | 115 | 100 | 75 | 30 | 45 | 5 | 5 | 1/2" | 2,996 |
| FMD-YGAK 100x120 | 120 | 100 | 75 | 30 | 45 | 5 | 5 | 1/2" | 3,247 |
| FMD-YGAK 110x130 | 130 | 110 | 85 | 30 | 45 | 5 | 5 | 1/2" | 3,925 |
| FMD-YGAK 115x130 | 130 | 115 | 90 | 40 | 45 | 5 | 5 | 1/2" | 4,103 |
| FMD-YGAK 120x140 | 140 | 120 | 95 | 40 | 45 | 5 | 5 | 1/2" | 4,349 |
| FMD-YGAK 125x145 | 145 | 125 | 100 | 40 | 45 | 5 | 5 | 1/2" | 4,922 |
| FMD-YGAK 125x150 | 150 | 125 | 100 | 40 | 45 | 5 | 5 | 1/2" | 5,021 |
| FMD-YGAK 130x150 | 150 | 130 | 105 | 40 | 45 | 5 | 5 | 1/2" | 5,062 |
| FMD-YGAK 140x160 | 160 | 140 | 115 | 40 | 45 | 5 | 5 | 1/2" | 5,767 |
| FMD-YGAK 150x170 | 170 | 150 | 115 | 40 | 45 | 5 | 5 | 1/2" | 6,744 |
| FMD-YGAK 150x180 | 180 | 150 | 115 | 40 | 45 | 5 | 5 | 1/2" | 7,431 |
| FMD-YGAK 160x180 | 180 | 160 | 135 | 50 | 45 | 5 | 5 | 1/2" | 7,488 |
| FMD-YGAK 160x190 | 190 | 160 | 135 | 50 | 45 | 5 | 5 | 1/2" | 8,32 |
| FMD-YGAK 180x200 | 200 | 180 | 155 | 50 | 45 | 5 | 5 | 1/2" | 9,242 |
| FMD-YGAK 180x210 | 210 | 180 | 155 | 50 | 45 | 5 | 5 | 1/2" | 10,17 |
| FMD-YGAK 200x220 | 220 | 200 | 175 | 50 | 45 | 5 | 5 | 1/2" | 11,301 |
| FMD-YGAK 200x230 | 230 | 200 | 175 | 50 | 45 | 5 | 5 | 1/2" | 12,39 |
| FMD-YGAK 220x270 | 270 | 220 | 175 | 50 | 45 | 5 | 5 | 1/2" | 17,048 |
| FMD-YGAK 250x300 | 300 | 250 | 205 | 50 | 45 | 5 | 5 | 1/2" | 21,624 |
