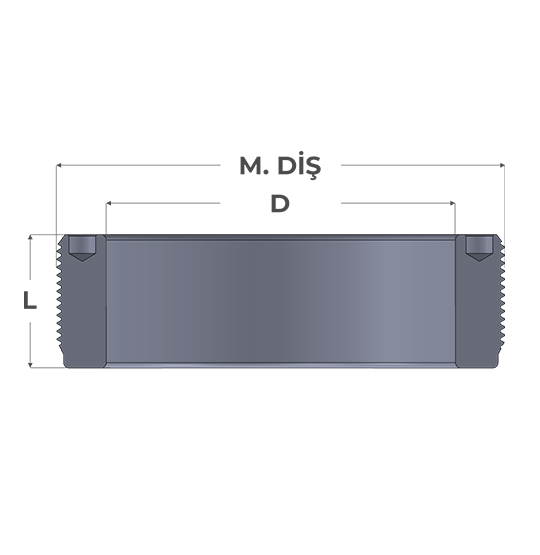

ÜRÜN KODU
PRODUCT CODE |
METRİK DİŞ
METRIC THREAD |
L mm |
D mm |
ÜRÜN AĞIRLIĞI (kg)
PRODUCT WEIGHT (kg) |
| FMD-ÇKİS 140 | M148x2,5 | 50 | 126 | 1,659 |
| FMD-ÇKİS 140/1 | M148x2,5 | 50 | 131 | 1,242 |
| FMD-ÇKİS 150 | M158x3 | 50 | 131 | 2,165 |
| FMD-ÇKİS 150/1 | M158X3 | 50 | 136 | 1,756 |
| FMD-ÇKİS 160 | M168x3 | 50 | 131 | 3,117 |
| FMD-ÇKİS 170 | M178X3 | 50 | 141 | 3,357 |
| FMD-ÇKİS 180 | M188X3 | 50 | 151 | 3,577 |
| FMD-ÇKİS 190 | M198x3 | 50 | 161 | 3,77 |
| FMD-ÇKİS 200 | M208X3 | 50 | 161 | 4,989 |
| FMD-ÇKİS 220 | M228x3 | 50 | 181 | 5,444 |
| FMD-ÇKİS 230 | M238x3 | 50 | 191 | 5,821 |
| FMD-ÇKİS 250 | M258x3 | 50 | 201 | 7,667 |
| FMD-ÇKİS 260 | M268X3 | 50 | 211 | 7,955 |
| FMD-ÇKİS 270 | M278x3 | 50 | 226 | 7,602 |
