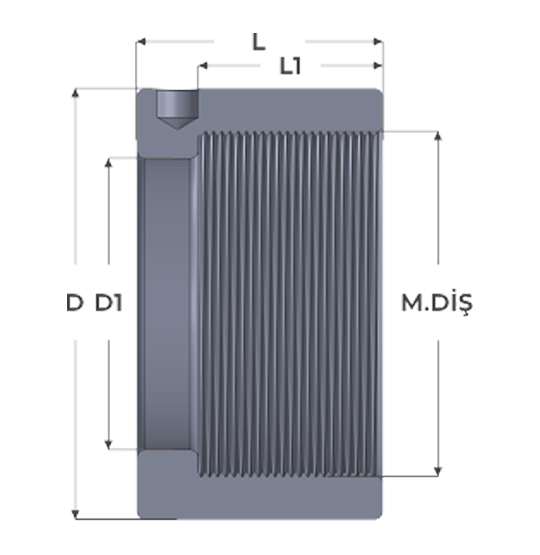

ÜRÜN KODU
PRODUCT CODE |
METRİK DİŞ
METRIC THREAD |
L mm |
L1 mm |
D mm |
D1 mm |
ÜRÜN AĞIRLIĞI (kg)
PRODUCT WEIGHT (kg) |
| FMD-RKDS 50x60 | M59x2 | 50 | 40 | 79 | 46 | 0,949 |
| FMD-RKDS 50x65 | M64x2 | 50 | 40 | 84 | 46 | 1,053 |
| FMD-RKDS 60x70 | M69x2 | 60 | 45 | 89 | 56 | 1,340 |
| FMD-RKDS 63x75 | M74x2 | 60 | 45 | 94 | 61 | 1,420 |
| FMD-RKDS 70x85 | M84x2 | 60 | 45 | 105 | 71 | 1,669 |
| FMD-RKDS 80x95 | M94x2 | 60 | 45 | 115 | 76 | 1,919 |
| FMD-RKDS 80x100 | M99x2 | 70 | 55 | 120 | 76 | 2,256 |
| FMD-RKDS 90x105 | M104x2 | 70 | 55 | 125 | 86 | 2,420 |
| FMD-RKDS 90x110 | M109X2 | 70 | 55 | 130 | 86 | 2,596 |
| FMD-RKDS 100x115 | M114X2 | 70 | 55 | 135 | 96 | 2,637 |
| FMD-RKDS 100x120 | M119X2 | 70 | 55 | 140 | 96 | 2,818 |
| FMD-RKDS 110x130 | M129X2 | 70 | 55 | 150 | 106 | 3,055 |
| FMD-RKDS 115x130 | M129X2 | 70 | 55 | 150 | 106 | 3,055 |
| FMD-RKDS 115x135 | M134X2 | 70 | 55 | 150 | 106 | 2,622 |
| FMD-RKDS 120x140 | M139X2 | 70 | 55 | 160 | 111 | 3,387 |
| FMD-RKDS 120x145 | M144x2 | 70 | 55 | 160 | 111 | 2,912 |
| FMD-RKDS 125x145 | M144X2 | 70 | 55 | 165 | 116 | 3,773 |
| FMD-RKDS 125x150 | M149X2 | 70 | 55 | 170 | 116 | 3,740 |
| FMD-RKDS 130x150 | M149x2 | 70 | 55 | 170 | 126 | 3,495 |
| FMD-RKDS 130x160 | M159X2 | 70 | 55 | 175 | 126 | 3,650 |
| FMD-RKDS 140x160 | M159X2 | 70 | 55 | 180 | 131 | 3,795 |
| FMD-RKDS 140x165 | M164X2 | 70 | 55 | 180 | 131 | 3,338 |
| FMD-RKDS 150X170 | M169X2 | 70 | 55 | 190 | 131 | 4,349 |
| FMD-RKDS 150X180 | M179X2 | 70 | 55 | 200 | 131 | 4,903 |
| FMD-RKDS 160X180 | M179X2 | 70 | 55 | 200 | 151 | 4,331 |
| FMD-RKDS 160X190 | Ml 89X2 | 70 | 55 | 215 | 151 | 5,749 |
| FMD-RKDS 170X200 | M199X2 | 70 | 55 | 230 | 161 | 7,140 |
| FMD-RKDS 180X210 | M209X2 | 70 | 55 | 230 | 161 | 5,688 |
